Item Description
For purchase and shipment only in North America (USA, Canada, Mexico). Please contact your local Hamamatsu office in other countries.
Advanced mid-IR LEDs are manufactured by Hamamatsu using unique crystal growth and process technologies. Output is significantly increased from prior products.
These devices feature:
- High output
- High-speed response
- High reliability
- Low power consumption

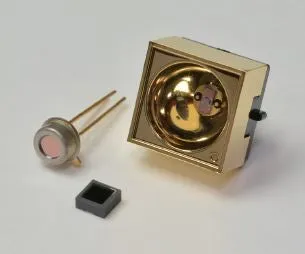

Available packages:
- SMD- Small surface mount type ceramic package - no window or Si window (very limited quantity available with window).
- TO-46 metal package
- TO-46 with reflector (for light condensing)

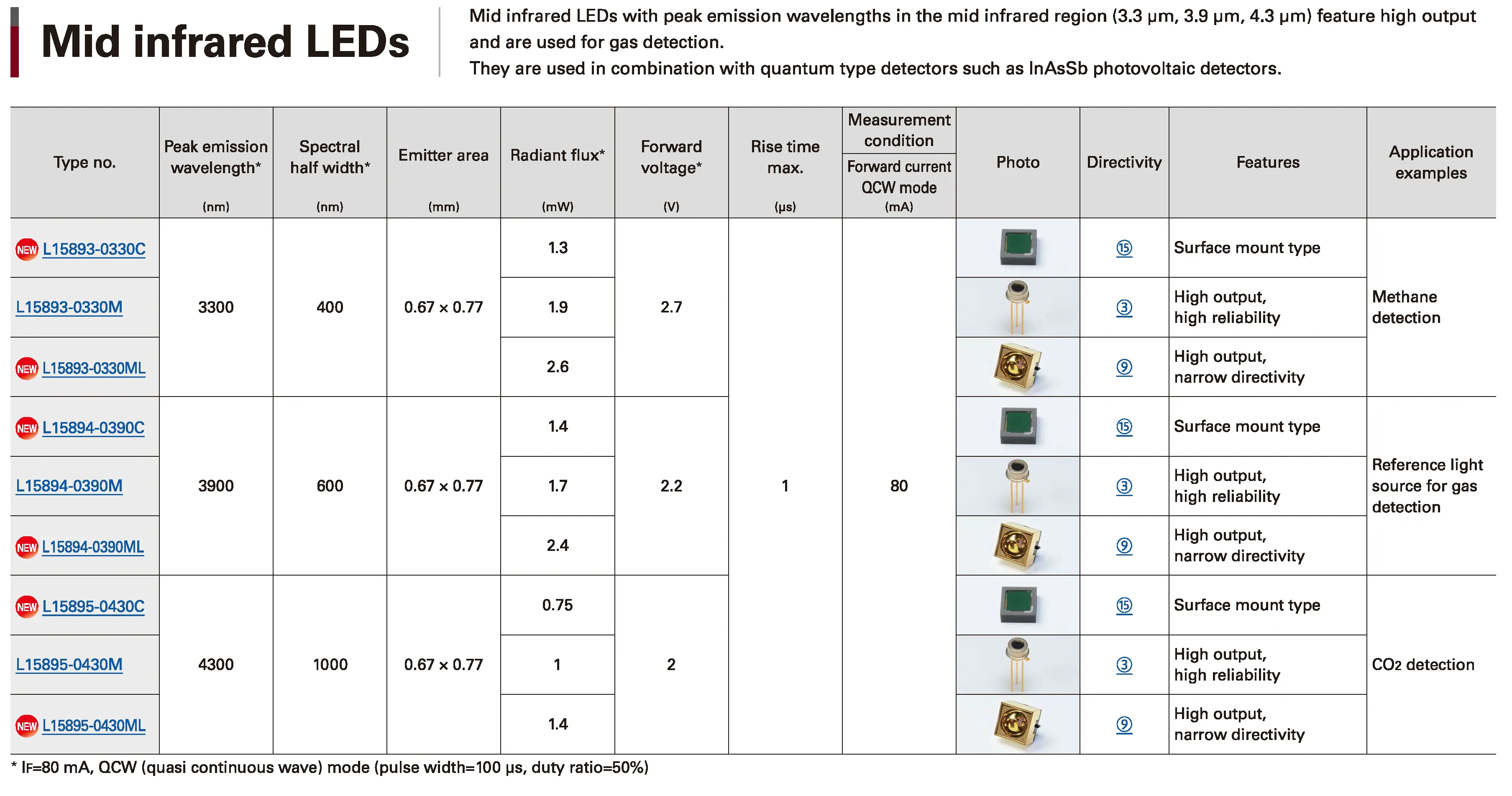

Product Technical Specs
- Summary product specifications are below
- View and download the detailed product sheet at the Download PDF tab
- Please contact us with any questions for or assistance via our or at 617-566-3821

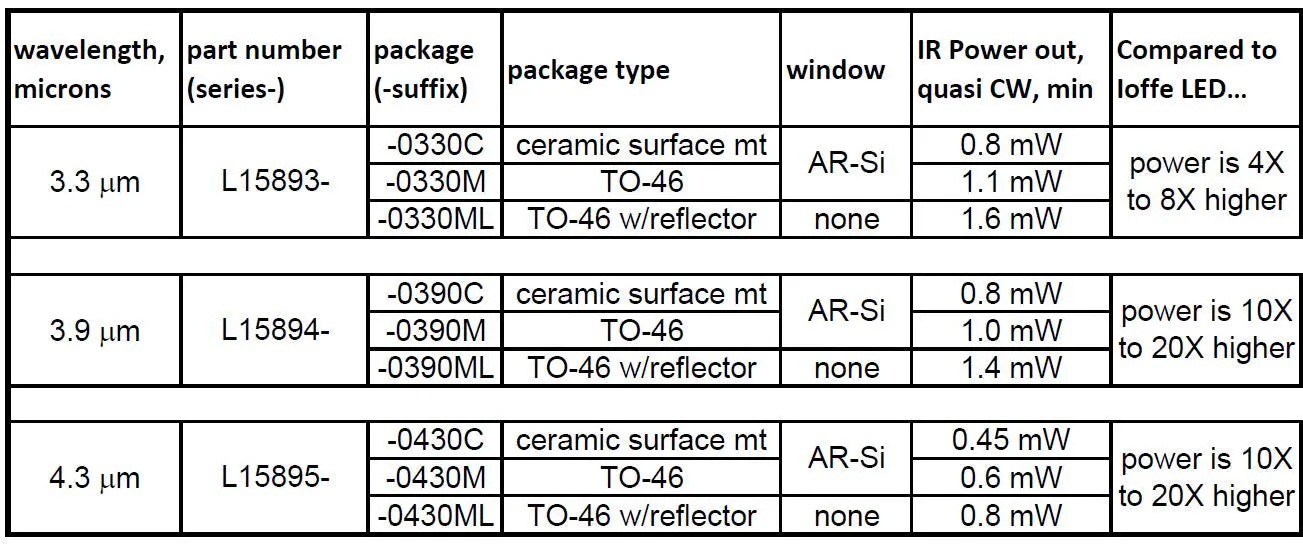

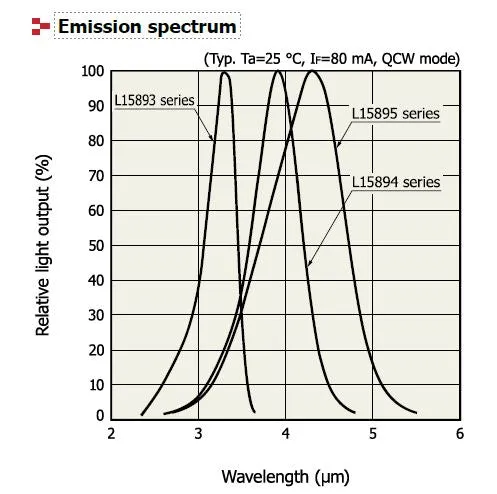

| Peak Wavelength | 3.3 um |
| Quasi-CW Power (minimum/typical) |
0.8/1.3 mW - SMD 1.1/1.9 mW - TO-46 1.6/2.6 mW -TO-46 w/reflector |
